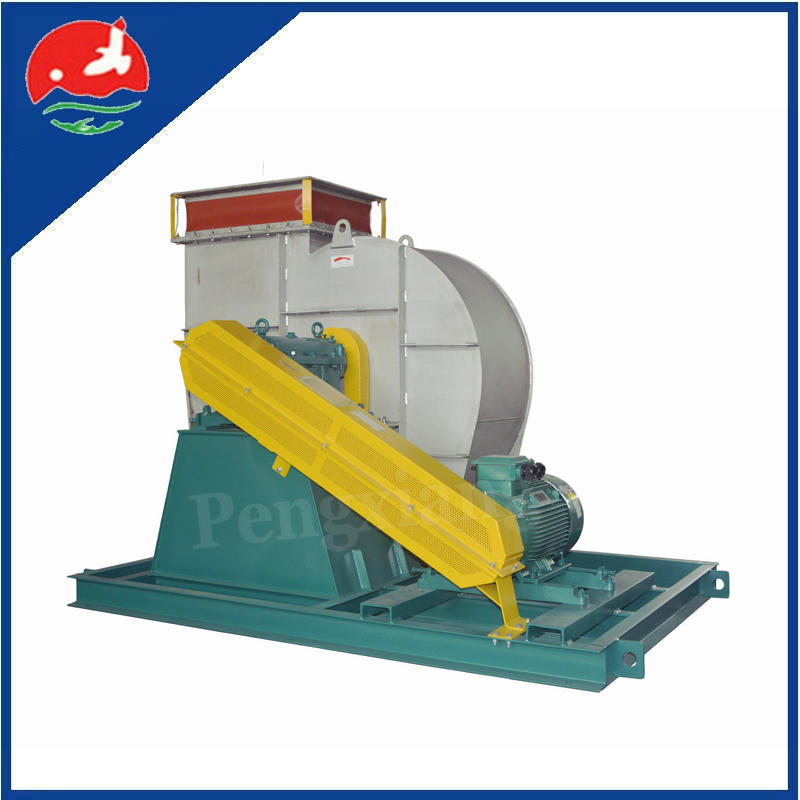

4-79 Series Centrifugal Fan

Availability:
Quantity:
Product Description

Product Parameters

  • Application: suitable for workshop and large building indoor exhausting

  • The impeller diameter: 300 - 2000 mm

  • Air volume range: 2000-430000 m3/h

  • Pressure range: 2600 pa

  • Working temperature: - 20 °C ~ 80 °C

  • Driving mode: A, B, C, D, E


Product Characteristics

  • According to the working condition, the fan can use single or double suction, the backward of circular arc blades impeller has good aerodynamic performance and reliability of smooth operation.

  • No3~6 fan is A transmission; No7~18 fan adopts mining, E,Ctype transmission No20, fan adopts B,D,E type transmission.

  • No8~20 fan can use double suction fan.

  • Transmission part group consists of main shaft, bearing box, rolling bearing, pulley or coupling, etc.

  • Fan outlet standards into soft connection and compound type damping spring shock absorber etc.

  • Fan can provide air inlet damper cleaning nozzle, bearing temperature measuring vibration sensor, impeller and other options to choose from.

  • Inlet and outlet flexible joints, dampers.

  • Inlet valve, bearing temperature and vibration dective sensers, impeller cleaning nozzle are optional.
